Showing 1–9 of 23 results
Standard Testing : ASTM D-5581, BS 598-107, EN 12697-30
Features & Specification
The use automatic compaction will result in consistensi and repeatable laboratory specimens, suitable for ASTM or BS Standard. Testing houses and design consultants who use the marshall methode of mix design will benefit from automatic compaction apparatus, which releses staff for other work during the compaction process.
The unit incorporates :
Automatic Compactor Machine : Heavy-duty welded steel construction The equipment is suitable for operation on 300 Watt, 220 V-AC, 50 Hz, 1 Phase. Automatic counter, module system for easy maintenance ON-OF-RUN-STOP-RESET- 500 Blow.
Compaction Mould : 4 inch diameter, 3 inch height, with collar and base plate machine steel, galvanized.
Compaction Mould 6″ : 6 inch diameter, 3 1/2 inch height, with collar and base plate machine steel, galvanized.
Compaction Hammer 10 lbs : The standard hammer has a 4,536 kg (10 lbs) sliding weight with a free fall 457 mm.
Compaction Hammer 22.5 lbs : The hammer has a 10.206 kg (22.5 lbs) sliding weight with a free fall 457 mm.
Compaction Pedestal : Comprising 300 mm square x 25mm thick steel plate secured to an 200 mm square x 45 inch high wooden block, the specimen mould,clamp and hammer guide are fitted to the plated, provided withcompaction hammer guide stand 650mm height.
Overal Dimension (l xwxh) : 400 x 450 x 1800 mm approx. / Weight (approx) : 200 Kg

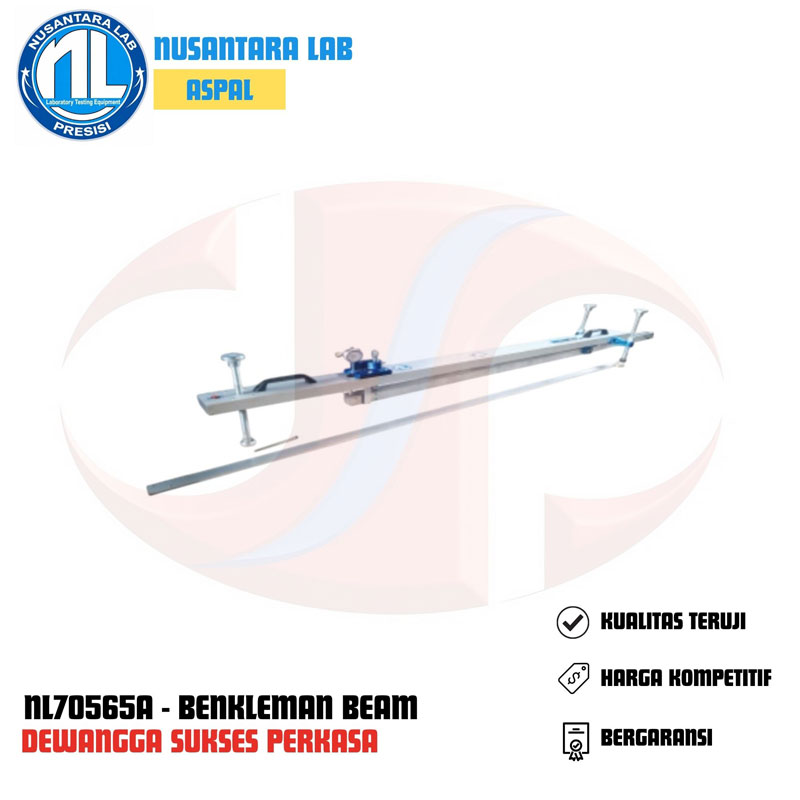

BENKELMAN BEAM / BI-450
For measuring the deflection of flexible pavement under the action of moving wheel loads.
Consist of:
Fixed Beam (BI-451) Alumunium profile frame, 3 points adjuster, with vibrator and dial holder. Alumunium strip arm, 1:2 level ratio (1 set)
Tire Gauge (BI-455) 120 psi capacity (1 pc)
Surface Thermometer (BI-456) Range 0 – 100 deg.C (1 pc)
Dial Indicator (GE-137) Range 30 x 0.01 mm (1 pc)
Dimension (l x w x h) : 244 x 50 x 50 Cm/ Gross weight : 45 Kg
Standard supply with instruction manual books
Standard Testing : ASTM D-2172 / AASHTO T-164; According SNI 03-6894-2002
For determining bitument content in hot mixed paving and pavement samples.
Consist of :
Dimension (l x w x h): 60 x 40 x 60 cm / Gross weight: 50 Kg
For cutting core samples from asphalt, concrete and other material on the road, run ways and structures.
Dimension (l x w x h) : 97 x 57 x 150 cm / Gross weight : 145 Kg
ASTM D-402 / AASHTO T-78
Dimension (l x w x h) : 100 x 80 x 80 cm / Gross weight : 10 Kg

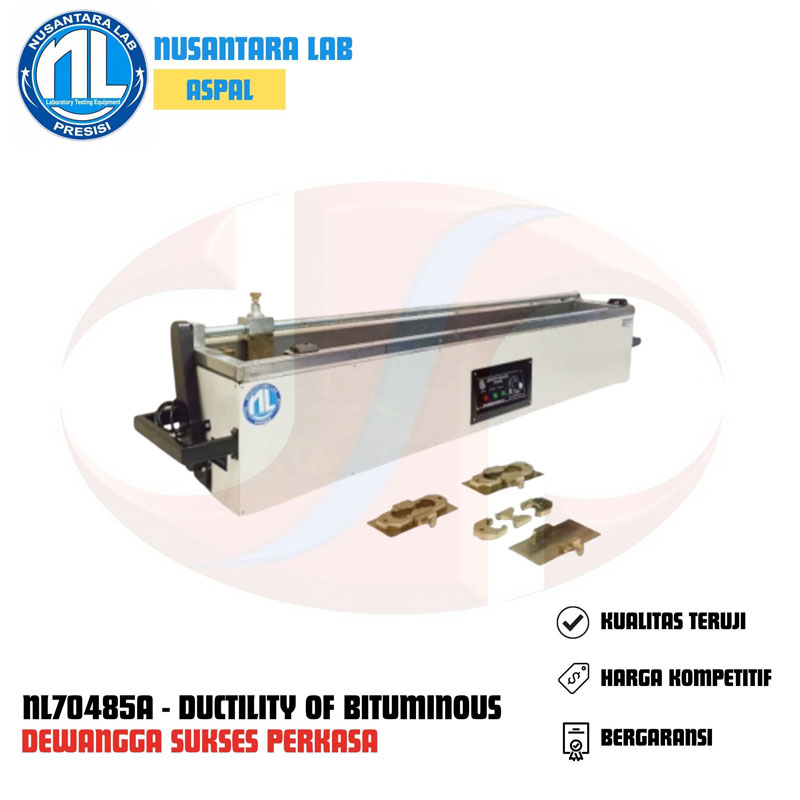

Standard Testing : ASTM D-113 / AASHTO T-51; According SNI 06 -2432-1991
For determining ductility of formed asphalt/ cement or semi solid bitument by measuring distance of elangation before breaking point when two end of briquet are pulled a part at a specific speed and temperature.
Dimension (l x w x h) : 244 x 80 x 80 cm / Gross weight : 150 Kg
