Alat Laboratorium Aspal

Alat Laboratorium Aspal

Showing 10–18 of 23 results

Flash and Fire Point by Cleveland Open Cup
ASTM D-92 / AASHTO T-48

For determining flash and fire point by cleveland open cup for petroleum product and other liquids, except fuel oils and materials having an open flash point below 79°C (173°F) as determined by the cleveland open cup tester.

Consist of :

Flash Cup: Brass, insulation handle.

Burning Pipe : Brass pipe, insulation handle.

Flash Cup Plate : Steel Plate.

Support : Adjustable height metal, thermometer holder.

Y-Connector : Brass, provided with gas hose.

Bunsen Burner : Heat resources.

Thermometer : Astm 11 C, 6 to 400°C.

Dimension (l x w x h) : 150 x 30 x 30 Cm / Weight (approx) : 8 Kg
Flash and Fire Point by Cleveland Open Cup Electric heating
ASTM D-92 / AASHTO T-48

For determining flash and fire point by cleveland open cup for petroleum product and other liquidexcept fuel oils and materials having an open flash point below 79°C (173°F) as determined by the cleveland open cup tester.

Consist of :

Flash Cup : Brass, insulation handle.

Cleveland Electric : Electric, 220 V-AC, heating speed control.

Thermometer : Astm 11 C, 6 to 400°C.

Dimension (l x w x h) : 150 x 30 x 50 Cm / Weight (approx) : 20 Kg
JUAL CORE DRILLING TEST – BETON – ASPAL

Kami CV. DEWANGGA SUKSES PERKASA melayani dan men jual ALAT CORE DRILL seperti :

Jual Alat Core Drill Beton, Jual Alat Core Drill Aspal, Jual Alat Core Drill Beton Bertulang, Jual Alat Cor Drill Aspal Curah, Jual Alat Core Drill Elektrik, Jual Alat Core Drill Genset, Jual Alat Core Drill Bensin, dll
LABORATORY PENETRATION TEST SET (Manual)
ASTM D-5 / AASHTO T-49

For determining consistency of bituminous materials

Consist of :

Penetrometer : Cast alumunium frame , 4.5″ dial iniator, 400 x 0.1 mm dial, single knob control, weight of needle and plunger 50 gr.

Penetration Needle : Steel needle with brass shank, 1 mm dia

Transfer Dish : Glass, 100 mm i.d approx.

Thin Box : 55 mm i.d approx, alumunium sheet, seamless.

Dimension (l x w x h) : 50 x 50 x 70 cm/ Gross weight : 20 Kg
Laboratory Penetration Test Set (Electric System)
Standard Testing : ASTM D-5 / AASHTO T-49

For determining consistency of bituminous materials.

Consist of :

Penetrometer : Electric control box, 220 V-AC variable timer, ON-OF and START switch for automatic plunger release cast alumunium frame, 4 1/2″ dial indicator, 400 x 0.1 mm dial, knob control. manual electric, weight of needle and flunger : 50 gr.

Penetration Needle : Steel needle with brass shank, 1 mm dia.

Transfer Dish : Glass, 100 mm i.d approx.

Thin Box : (sample container) 55 mm i.d approx, alumunium sheet, seamless.

Dimension (l x w x h) : 50 x 50 x 70 cm / Gross weight : 25 Kg
Loss on Heating / Thin Film Test
ASTM D-6/D-1754 ; AAHSTO T-47/T-179; According SNI 06-2440-1991

For determining the loss in mass (exclusive of water) of asphaltic compounds after heating.

Consist of :

Revolving Shelf Oven : Variable temperature oven, cast alumunium rotating shelf, 5-6 rpm, external electromotor drive, 220 V-AC, 1400 Watt.

Thin Box : 55 mm i.d. approx, alumunium sheet, seamless.

Thermometer : Astm 13 C, 155 to 170°C.

Dimension (l x w x h) : 100 x 100 x 100 Cm / Weight (approx) : 45 Kg

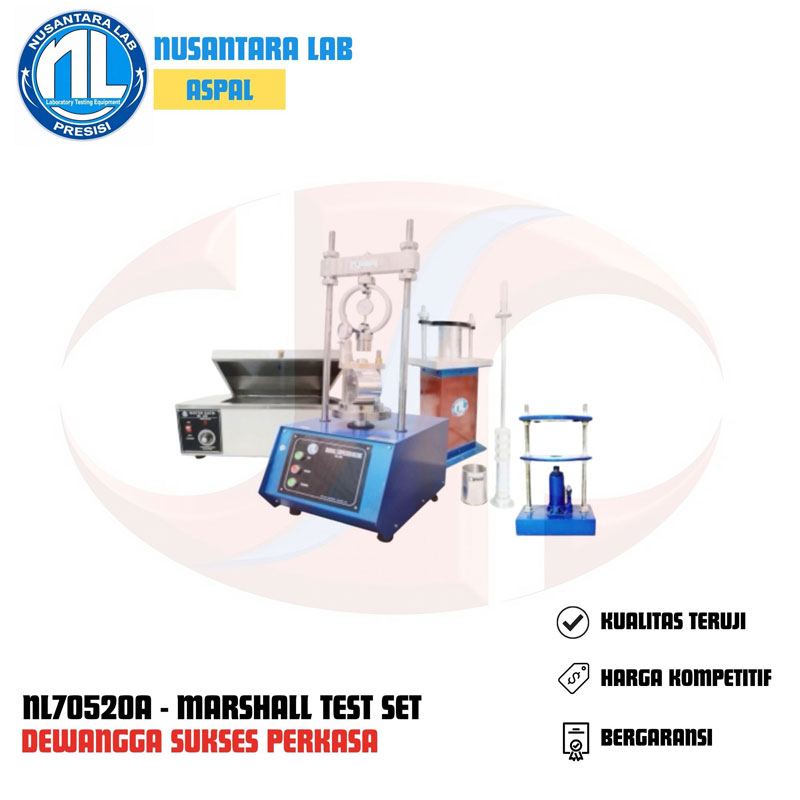

Marshall Test Set
Standard Testing : ASTM D-1559 / AASHTO T-245 / SNI 06-2484-1991

For determining the resistance to plastic flow of cylinder specimen of bituminous paving mixture loaded on the lateral surface by means of the marshall apparatus.

Consist Of :

Compression Machine : Steel frame electric, 220 V-AC, 1/2 HP 1 Phase, speed : 2″ per-minute.

Compaction Mold :Machine steel, plated, 4inch dia., 3inch height, with collar and base plate.

Stability Mold : Cast alumunium, split type 4 inch i.d., 4inch wide.

Compaction Hammer : Machine steel, plated 10 lbs, hammer weight, 18 inch drop height.

Compaction Pedestal : Wooden base with steel platen.Comprising 300 mm square x 25mm thick steel plate secured to an 200 mm square x 45 inch high wooden block.

Compaction Mold Holder : Machined steel, quick clamping sytem.

Extruder : Steel frame, hydraulic system. Used for ejection speciment from mold BI-322 .

Flow Meter : Cast alumunium, clamping bolt, supplied complete with dial indicator 30 x 0.01 mm .

Water Bath : 12 litre capacity, stainless steel, water heater, 220V-AC thermostat 30 – 85°C.

Proving Ring : 6.000 lbs capacity.

Dimension (l x w x h) : 67 x 50 x 100 Cm / Gross weight : 200 Kg

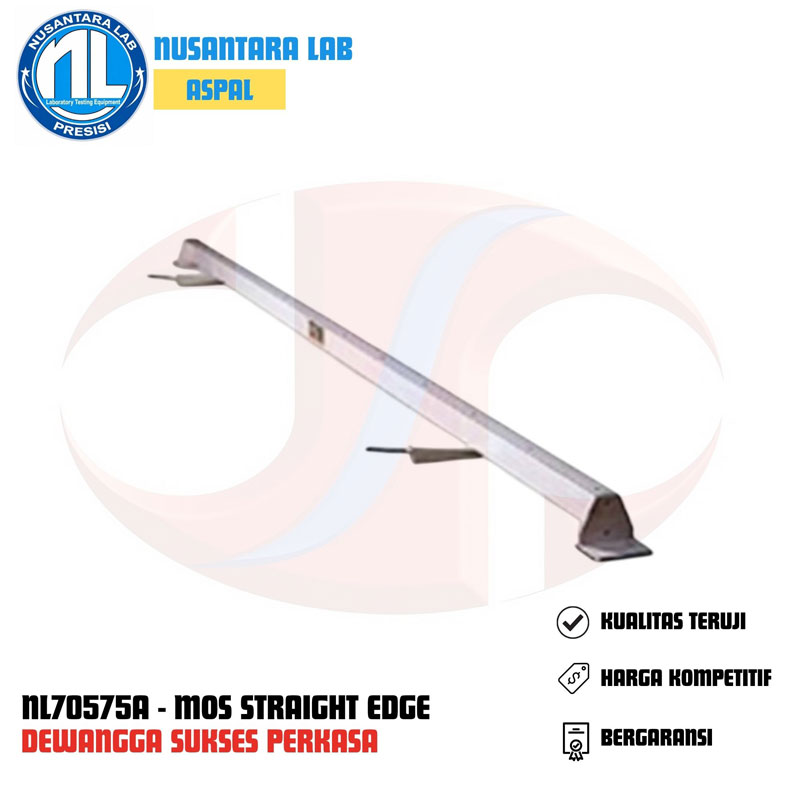

Mot Straight Edge
For measuring the irregulation of road surface both asphalt and concrete pavement.

Consist Of :

Mot Straight : Alumunium profile, 3 meter length,with handle.

Metric Wedges : Variable measurement from 2.5 – 7.5 cm.

Dimension (l x w x h) : 350 x 30 x 30 Cm / Gross weight : 20 Kg

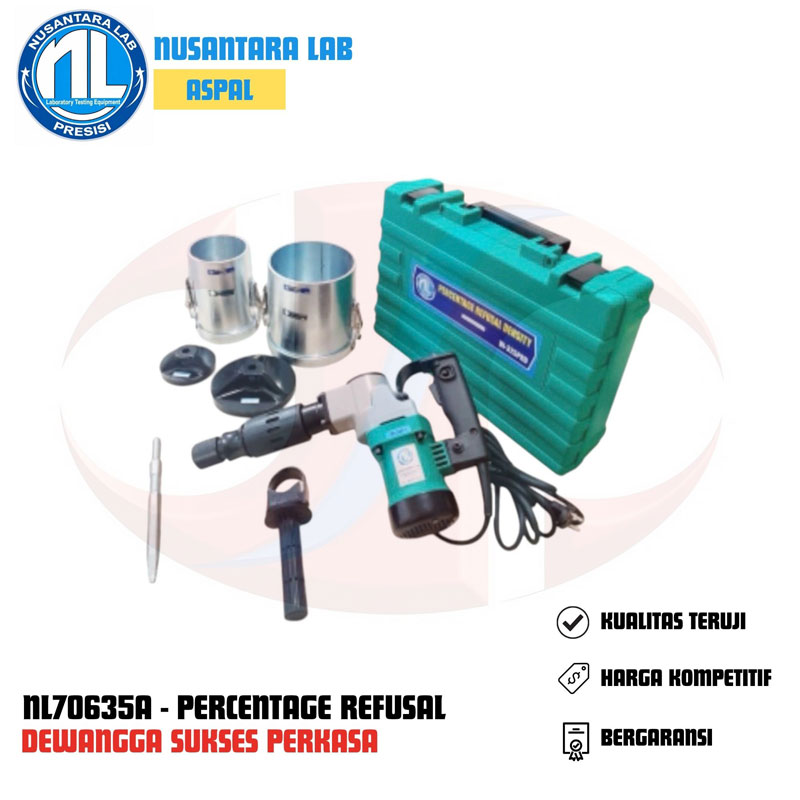

Percentage Refusal Density
Vibrating Hammer Machine : Suitabble for compacting asphalt samples electric consumption 220 V, 50-60 Hz, 1 phase.

Small Tamping Foot : 102 mm diameter.

Large Tamping Foot : 146 mm diameter.

Shank : 300 mm shank for tamping foot.

Split Mould : 4 inch mould diameter, split type, with base plate.

Split Mould : 6 inch mould diameter, split type, with base plate.

Dimension (l x w x h): 67x 42 x 23 Cm / Gross weight: 40 Kg
