Alat Laboratorium Tanah

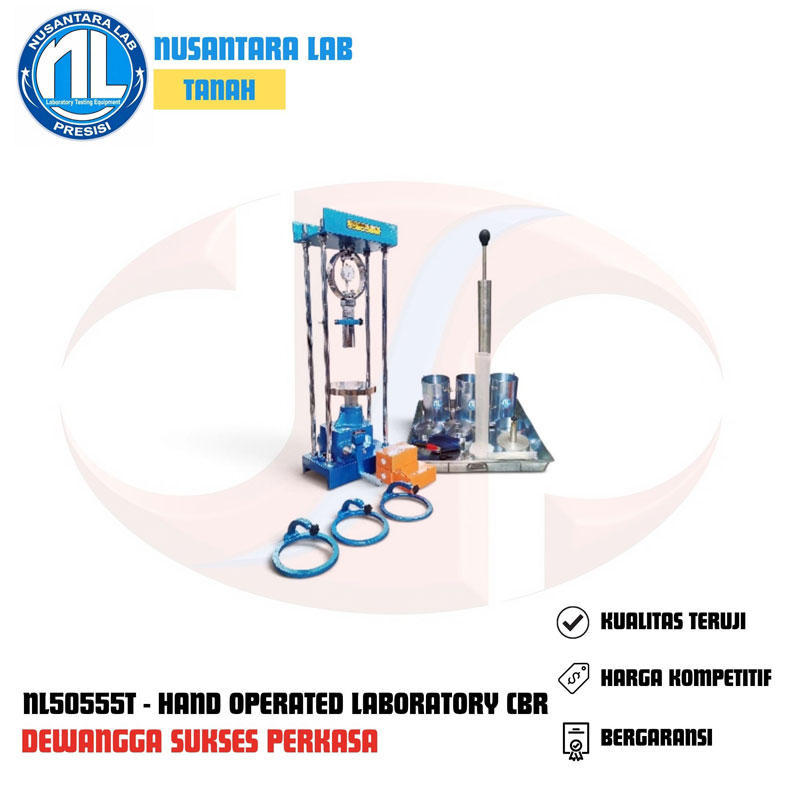

ASTM D-1883 / AASHTO T-193; According SNI 03-1744-1989

For determining the bearing ratio of soil.

Consist of :

• Mechanical Loading Machine : Steel frame, hand operated, two speed, 10.000 lbs capacity,1.954″ piston diameter.
• CBR Mold : Machine steel, 6″ i.d, 7″ height, 2″ height of collar.
• Spacer Dish : Machine steel, 5 15/16″ diameter, 2.416″ height.
• Cutting Edge : Machine steel, sharp edge.
• Circular Surcharge Weight : Machine steel, 5 7/8″ o.d, 2 1/8″ i.d, 5 lbs weight.
• Slotted Surcharge : machine steel, 5 7/8″ o.d, 2 1/8″ slotted width, 5 lbs weight.
• Swell plate : Alumunium with adjustable stem.
• Swell Tripod : Alumunium for mounting sweel dial gauge.
• Modified Proctor Hammer : machine steel, plated, 2″ dia, 18″ drop height,10 lbs weight.
• Filter Paper : 6 inch diameter., 100 sheets/ box.
• Proving Ring : 6.000 lbs capacity.
• Dial Indicator : Measuring range 0.01″ x 1″.
• Swell Dial Penetration : Range 30 mm x 0.01 mm .
• Square Pan) Galvanized steel, 65 x 65 x 7.5 cm.
• Thin Box : Alumunium, 60 gr capacity.
• Graduated Cylinder : Plastic  made, 1000 ml capacity, single numberin.
• Scoop : Cast alumunium, large size, round buttom.
• Trowel ; Pointed type, wooden handle.
• Straight Edge : Galvanized steel, 300 mm length, for leveling samples in mold.

Dimension (l x w x h) : 110 x 70 x 70 cm / Gross weight : 200 Kg

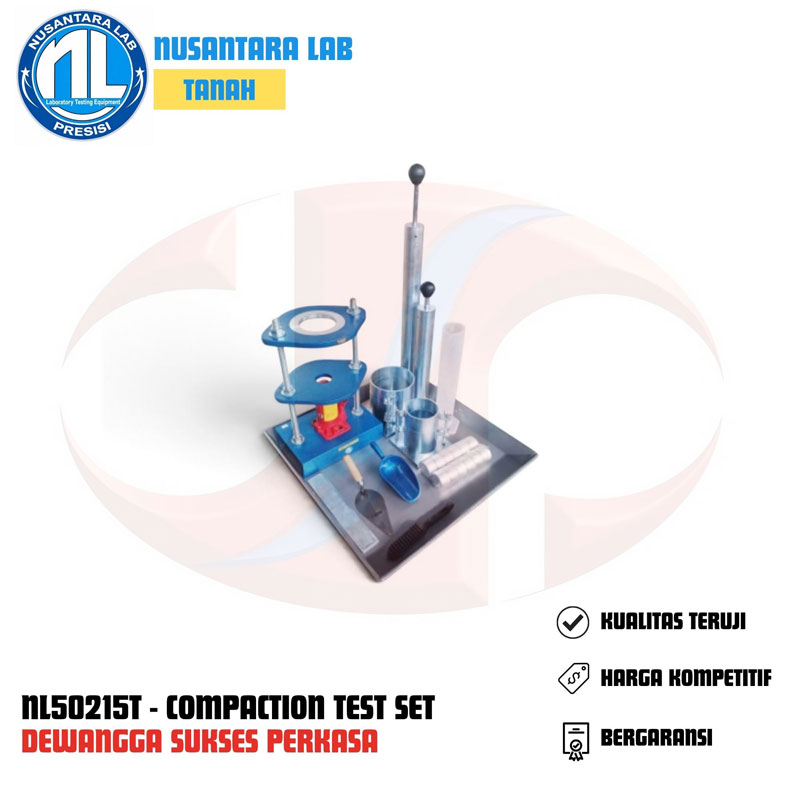

ASTM   D-698/D-1557;   T-99/ T-180 / SNI-03-1742-1989

For determining moisture – density relationship.

Consist of :

• Standard Proctor Mold : Machine steel, plated, 4″ i.d., 4.584″ height, 2″ height of collar.
• Modified Proctor Mold : Machine steel, plated, 6″ i.d., 4.584″ height, 2″ height of collar.
• Standard Proctor Hammer : Machine steel, plated, 12″ drop height, 5,5 lbs weight.
• Modified Proctor Hammer : Machine steel, plated, 18″ drop height, 10 lbs weight.
• Extruder : Steel frame, hydraulic jack.
• Square Pan : Galvanized steel 65 x 65 x 7.5.
• Thin Box : Alumunium, 60 gr capacity.
• Graduated Cylinder : Plastic  made, 1000 ml capacity, single numbering.
• Scoop : Cast alumunium, large size, round buttom.
• Trowel : Pointed type, wooden handle.
• Straight Edge : Galvanized steel, 300 mm length, for leveling samples in molds.
• Rubber Mallet : Rubber head, 0.5 Kg weight, wooden handle.
• Steel Wire Brush : Steel wire, wooden handle.

Dimension (l x w x h) : 62 x 62 x 40 Cm / Gross Weight : 120 Kg
