Alat Laboratorium Tanah

Alat Laboratorium Tanah

Showing 10–18 of 47 results

Direct Shear Test Hand Operated
ASTM D-3080 / AASHTO T-236

For determining shearing resistance of soil sample.

Loading Machine Consist of :

Frame : Welded steel frame, hand operated gear box, 100 kg cap.

Loading Hanger : Machine steel, galvanized, supplied without load.

Shear Box : Cast alumunium box, 63.5 mm sample diameter,porous stone, loading capacity.

Loads : Slotted, machine steel, galvanized.

Load : 3167 gr weight.

Load : 6334 gr weight.

Sample Tube : Machine steel, 63.5 mm diameter, galvanized, with extruder.

Proving Ring : 100 kg capacity.

Dial Indicator : Range 10mm x 0.01mm.

Dial Indicator : Range 20mm x 0.01mm.

Wire Saw : 10 cm length approx.

Dimension (l x w x h) : 130 x 20 x 130 cm / Gross Weight : 125 Kg
DUTCH CONE PENETROMETER 2,5 Ton Capacity
For determining cone resistance and friction resistance of soil layers.

Consist of :

Press-In Apparatus : Steel construction, manually operated 2.5 tons capacity.

Sounding Rod : Machined steel, 36 mm o.d., 1 mtr effective length, tappered thread.

Plunger Rod : Round bar, 15 mm dia, 1 mtr length.

Push Adaptor : Machined steel.

Pull Adaptor Machined steel.

Spiral Anchor : Machined steel, welded 1.5 m length.

Handle And T-piece : Machined steel, welded.

Mantel Cone : Precision machine steel hardened tip, tappered thread. 60º angle, 35.7 mm diameter.

Friction Cone : Precision machine steel hardened, with friction jacket, tappered thread 60º angle, 35.7 mm dia.

Wrenches Set : Pipe wrench (2), adjustable wrench (1), spanner wrench, allen key (1), screw driver (1), oil can (1), steel brush (1), piston wrench (1), seals tape (2), oil seals (2), steel box (1). (1 Set)

Long Fasten Press : 1.5 m length, 8 cm width.

Short Fasten Press : 1 m length, 12 cm width.

Manometer : 60 kg/ cm² cap, single pointer, 6″ dia, lower mount connection.

Manometer : 250 kg/ cm² cap, single pointer, 6″ dia, lower mount connection.

Dimension (l x w x h): 220 x 120 x 80 cm Gross weight: 460 kg
Dutch Cone Penetrometer 5 Ton Capacity
ASTM D3441

For determining cone resistance and friction resistance of soil layers.

Consist of :

Press-In Apparatus : Steel construction, manually operated 5 tons capacity.

Sounding Rod : Machined steel, 36 mm o.d., 1 mtr effective length, tappered thread.

Plunger Rod : Round bar, 15 mm dia, 1 mtr length.

Push Adaptor : Machined steel.

Pull Adaptor : Machined steel.

Spiral Anchor : Machined steel, welded 1.5 m length.

Handle And T-piece : Machined steel, welded.

Mantel Cone : Precision machine steel hardened tip, tappered thread. 60º angle, 35.7 mm diameter.

Friction Cone : Precision machine steel hardened, with friction jacket, tappered thread 60º angle, 35.7 mm diameter.

Wrenches Set : Pipe wrench (2), adjustable wrench (1), spanner wrench, allen key (1), screw driver (1), oil can (1), steel brush (1), piston wrench (1), seals tape (2), oil seals (2), steel box (1). (1 Set)

Fasten press : Beam Cannal.

Long Fasten Press : 1.8 m length, 12 cm width.

Short Fasten Press : 1.2 m length, 15 cm width.

Manometer : 60 kg/ cm² cap, single pointer, 6″ dia, lower mount connection.

Manometer : 500 kg/ cm² cap, single pointer, 6″ dia, lower mount connection.

Dimension (l x w x h): 220 x 120 x 80 cm / Gross weight: 500 kg
DYNAMIC CONE PENETROMETER / DCP TEST
For determination of field CBR value (rapid quality control)

Consist of :

Handle : Stainless steel.

Hammer : Machined steel, Painted, 8 kg weight.

Guide Rod : Stainless steel, 16 mm diameter, drop height 575 mm.

Anvil : Machined steel, welded painted.

Penetration Rod : Stainless steel, 16 mm dia, 107 cm length, 75 cm effective.

Cone : Hardened tool steel cone tip, 60 deg. angle, 20 mm dia., stainless steel adaptor.

Penetration Scale : Stainless steel, 16 mm dia, 100 cm scale.

Carrying Bag : Water proof cloth.

Open End Wrench : Vanadium steel 12/13, 14/15.

Dimension (l x w x h) : 115 x 40 x 40 cm / Gross weight : 18 Kg

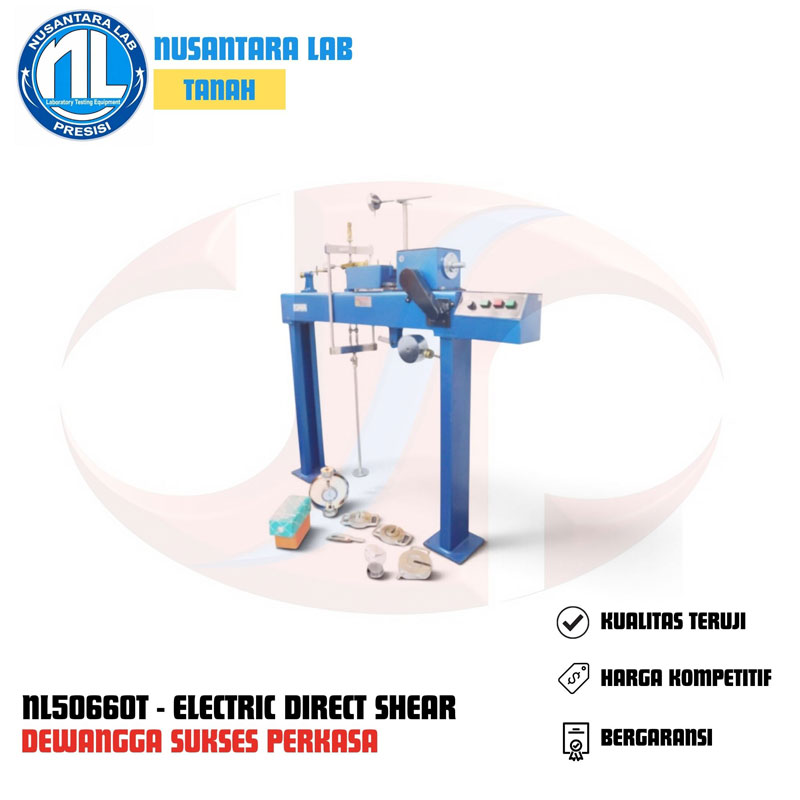

Electric Direct Shear Test
ASTM D-3080 / AASHTO T-236

For determining shearing resistance of soil sample.

Consist of :

Electric shear Machine : Welded steel frame, electric 220V, 200 Watt, 50, Hz25 speed gear box 0.00 to 1.2 mm/ minute.

Loading Hanger : Machine steel, galvanized, supplied without load.

Shear Box : Cast alumunium box, 63.5 mm sample diameter,porous stone, loading capacity.

Loads : Slotted, machine steel, galvanized.

Load : 3167 gr weight.

Load : 6334 gr weight.

Sample Tube : Machine steel, 63.5 mm diameter, galvanized, with extruder.

Proving Ring : 100 kg capacity.

Dial Indicator : Range 10mm x 0.01mm.

Dial Indicator : Range 20mm x 0.01mm.

Wire Saw : 10 cm length approx.

Dimension (l x w x h) : 130 x 20 x 130 cm / Gross Weight : 125 Kg

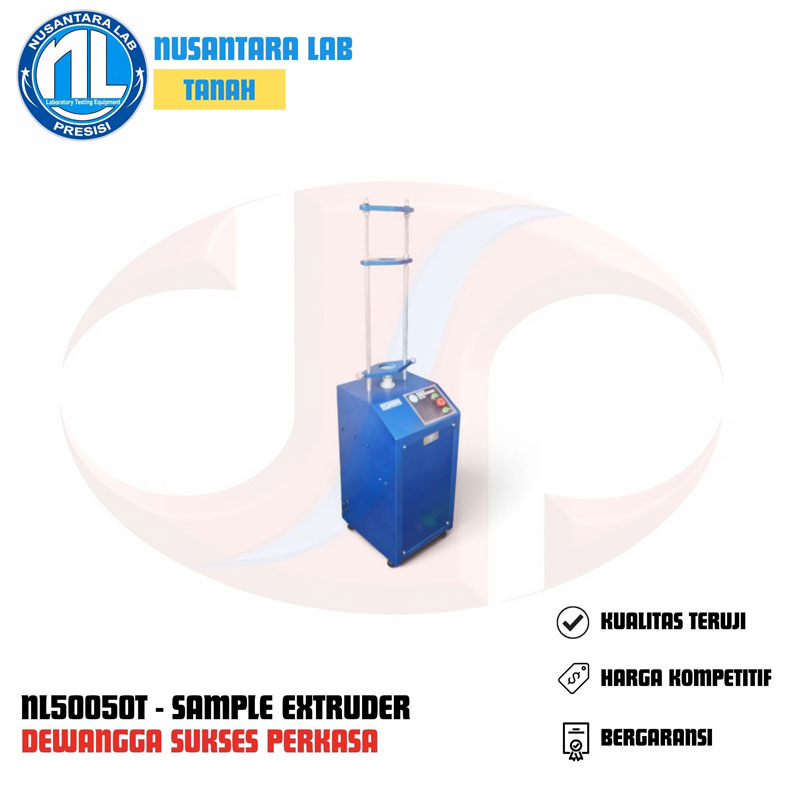

ELECTRIC SAMPLE EXTRUDER

ELECTRIC SAMPLE EXTRUDER

For extruding soil speciment from 68 mm dia sampling tube (HAND BOR part), electric, 220 Volt, 750 Watt, 1 Phase. Supplied without sampling tube.

Dimension (l x w x h) : 40 x 50 x 130 Cm / Gross weight : 60 Kg
Field CBR Test / CBR Lapangan

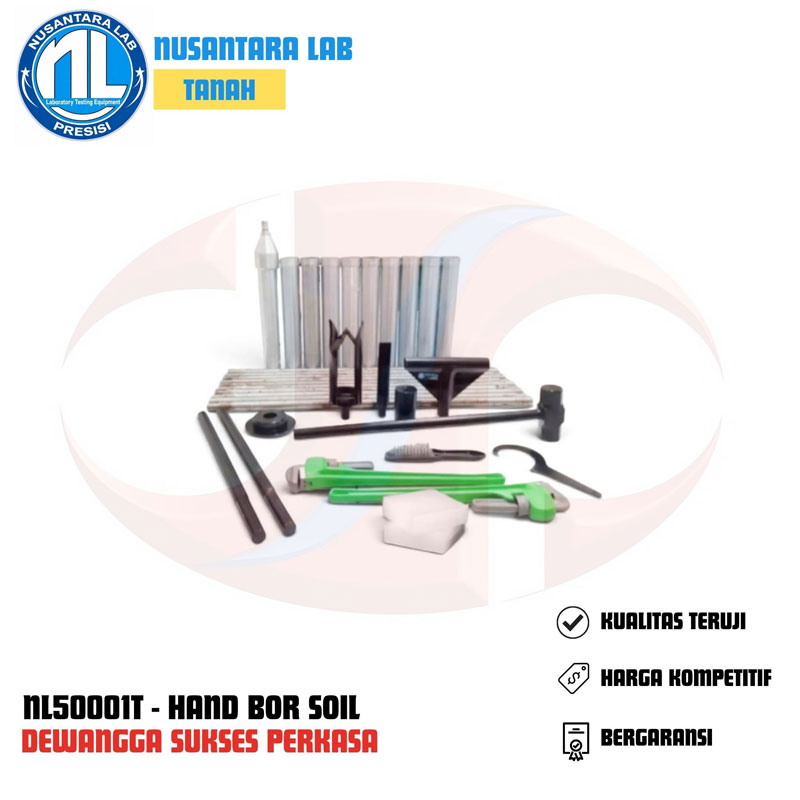

HAND BOR
HAND BOR (Soil Sampling Apparatus)

Drilling for soil sampling preparation

Drilling Rod : Solid bar, 1 m length, 1 1/4″ dia.

Iwan Type Auger : Welded steel, two radial blades, 4″ dia.

Straight Choping Auger : Steel bar, hardened tip, 45 mm width.

T-Piece : Welded steel.

Tube Adaptor : Machine steel, with 3 clamping bolts.

Turning Rod : Machine steel, 1 1/4″ dia, 60 cm length.

Sampling Tube : 68 mm dia, 40 cm length, with 3 bolt holes.

Rod Head : Hardened, machined steel, 2 1/2″ dia.

Parafin : Parafin.

Vertical Guide : Machine Steel.

Allen Key : Hardened steel, 1/4”.

Pipe Wrench : 24″ Wrench.

Hammer : Steel, 5 kg weight, wooden handle.

Steel Wire Brush : Wooden handle, for cleaning laboratory/ field apparatus.

Dimension (l x w x h) : 105 x 60 x 60 cm/ Gross weight : 130 Kg

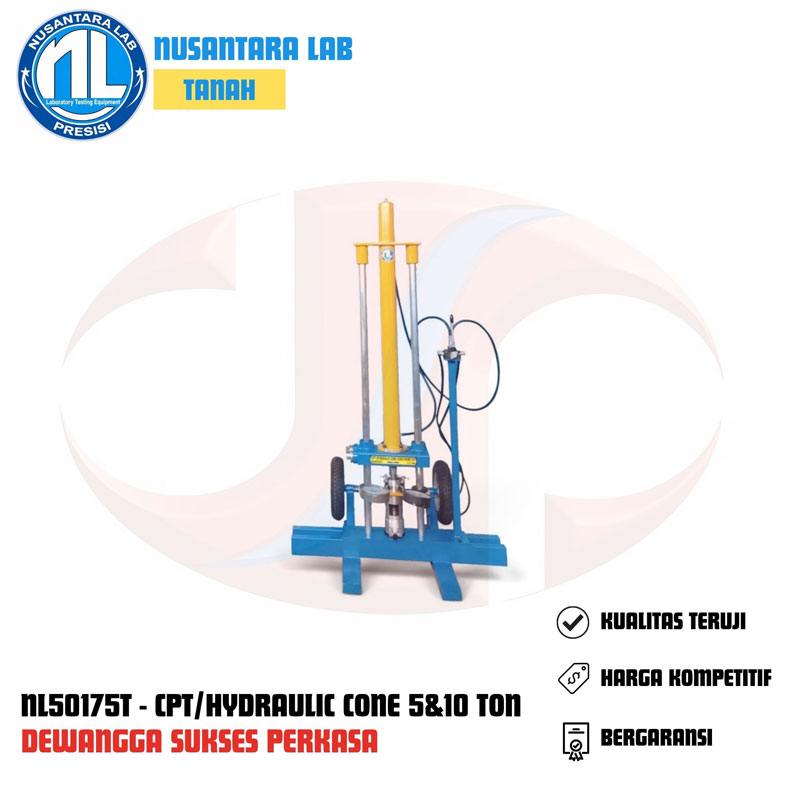

Hydraulic Cone Penetrometer 10 Ton Capacity
ASTM D-3441 / SNI 2827-2008

For determining cone resistance and friction resistance of soil layers.

Consist of :

Hydraulic Driving Appliance : Steel construction, hydraulic operated 10 Ton Capacity Design with double cylinder pressure, sounding speed 2 cm/ sec. incorporated two wheel integral with the driving appliance. Penetration measuring scale, 100 cm assembly on body. The standard measuring device is equipped with two pressure gauges.

Manometer : 100 kg / cm² capacity, lower mount connection.

Manometer : 1000 kg / cm² capacity, lower mount connection.

Power Unit : Hydraulic pump incorporated in governor matched to the installed petrol engine, 13.5 HP, hand starter.

Sounding Rod : Machined steel, 36 mm o.d., 1 mtr effective length, tappered thread.

Plunger Rod : Round bar, 15 mm dia, 1 mtr length.

Push Adaptor : Machined steel.

Pull Adaptor : Machined steel.

Anchoring Pickets : Machined steel, welded, spiral type anchor with screw pickets, 1.4 metre length.

Hydraulic Spanner : Machined steel, hydraulic gear box powered with variabel speed gasket, additional hand spanner for spare.

Mantel Cone : Precision machine steel hardened tip, tappered thread 60º angle, 35.7 mm diameter.

Friction Cone : Precision machine steel hardened, with friction jacket, tappered thread 60º angle, 35.7 mm diameter.

Wrenches Set : Pipe wrench (2), adjustable wrench (1), spanner wrench (1) allen key (1), screw driver (1), oil can (1), steel brush (1), piston wrench (1), seals tape (2), oil seals (2), steel box (1).

Long Fasten Press : Beam cannal, 160 cm length, 15 cm width.

Hydraulic Hose : Flexible hose with push/ pull coupler. 300 cm length, 10.000 psi capacity.

Field Trolley : Fillin sounding apparatus.

Standard supply with instruction manual operating

Overall dimension (l x w x h) : 130 x 105 x 210 cm / Gross Weight : 770 kg
