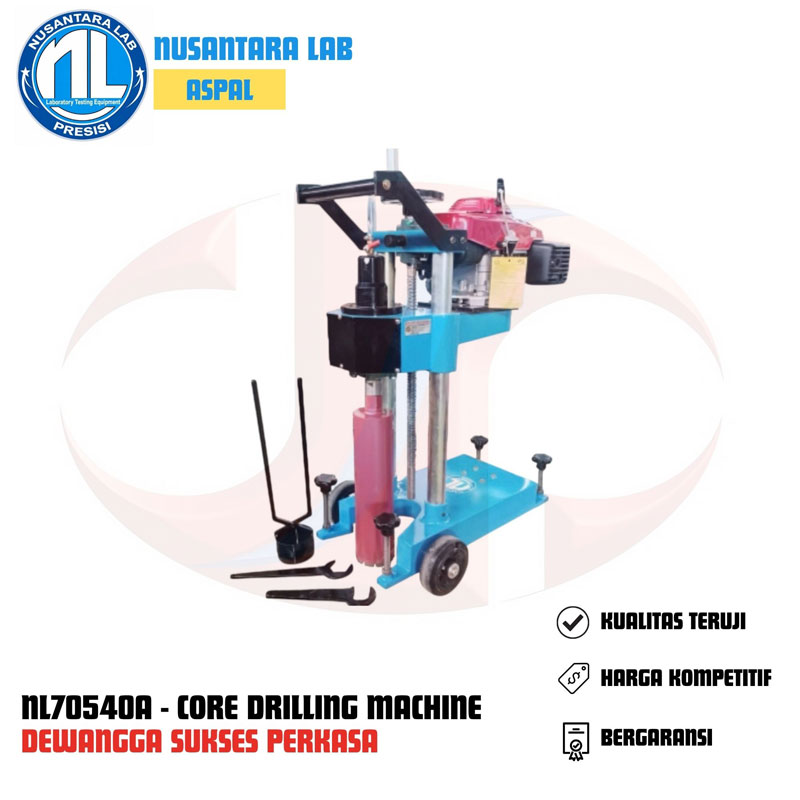

CORE DRILLING MACHINE TEST SET
For cutting core samples from asphalt, concrete and other material on the road, run ways and structures.
Consist of :
- Core Drilling Machine : Cast alumunium frame, gasoline engine 6.75 HP, 4 cyle vertical drilling position : rubber caster. Designed for cut core up to 6″ diameter.
- Built-in with nozzle water pump for drive water into core bit
- Diamond Core Bit : 4″ inner dia, 300 mm effective depth, 450 mm long.
- Sample Tong : 4″ diameter.
- Breaking Strip : Galvanized steel.
- Wrench : Steel spanner, 42 mm and 32 mm.
- Water Hose : PVC water hose, 1/4″ diameter, 10 metre length supplyed with clamp connection.
Dimension (l x w x h) : 97 x 57 x 150 cm / Gross weight : 145 Kg
