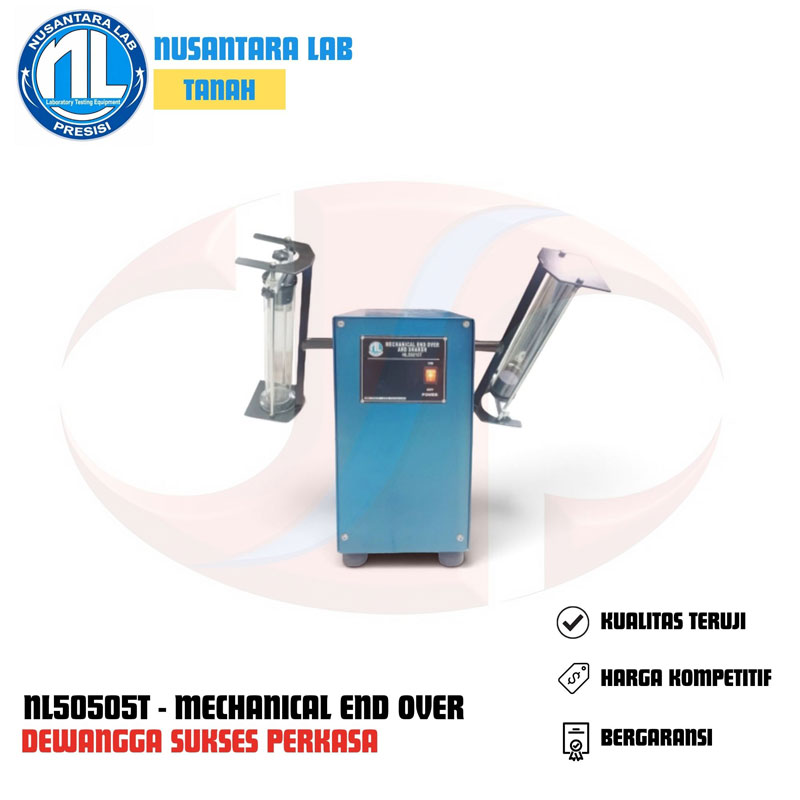

Mechanical end Over end Shaker

Electric, 220 V/ 50 Hz/ 1 Phase, 50 Rpm. Supplied complete with 2 glass jar 1000 ml and rubber bungs. Part used to Hydrometer analysis test set.

Dimension (l x w x h) : 40 x 60 x 60 cm / Gross weight : 30 Kg.

Category: Alat Laboratorium Tanah

Related products

CBR Laboratorium Hand Operated
ASTM D-1883 / AASHTO T-193; According SNI 03-1744-1989

For determining the bearing ratio of soil.

Consist of :

Mechanical Loading Machine : Steel frame, hand operated, two speed, 10.000 lbs capacity,1.954″ piston diameter.

CBR Mold : Machine steel, 6″ i.d, 7″ height, 2″ height of collar.

Spacer Dish : Machine steel, 5 15/16″ diameter, 2.416″ height.

Cutting Edge : Machine steel, sharp edge.

Circular Surcharge Weight : Machine steel, 5 7/8″ o.d, 2 1/8″ i.d, 5 lbs weight.

Slotted Surcharge : machine steel, 5 7/8″ o.d, 2 1/8″ slotted width, 5 lbs weight.

Swell plate : Alumunium with adjustable stem.

Swell Tripod : Alumunium for mounting sweel dial gauge.

Modified Proctor Hammer : machine steel, plated, 2″ dia, 18″ drop height,10 lbs weight.

Filter Paper : 6 inch diameter., 100 sheets/ box.

Proving Ring : 6.000 lbs capacity.

Dial Indicator : Measuring range 0.01″ x 1″.

Swell Dial Penetration : Range 30 mm x 0.01 mm .

Square Pan) Galvanized steel, 65 x 65 x 7.5 cm.

Thin Box : Alumunium, 60 gr capacity.

Graduated Cylinder : Plastic made, 1000 ml capacity, single numberin.

Scoop : Cast alumunium, large size, round buttom.

Trowel ; Pointed type, wooden handle.

Straight Edge : Galvanized steel, 300 mm length, for leveling samples in mold.

Dimension (l x w x h) : 110 x 70 x 70 cm / Gross weight : 200 Kg
Consolidation Test
ASTM D-2435 / AASHTO T-216

For determining the rate and magnitude of consolidation of soil when it is restrained laterally,loaded and drained axially.

Consist of :

Frame : Cast alumunium, two test unit.

Loading set : Three alternative lever arm 1:9, 1:10, 1:11.

Consolidometer : Brass, 50.5 mm sample dia.,porous stone,loading capacity.

Loads : 500 gr weight.

Loads : 1000 gr weight.

Loads : 2000 gr weight.

Loads : 4000 gr weight.

Loads :8000 gr weight.

Sample Tube : Machine steel, 50.5 mm dia.galvanized, with extruder.

Dial Indicator : Range 10 mm x 0.01 mm.

Wire Saw : 10 cm length approx.

Dimension (l x w x h) : 80 x 80 x 150 cm / Gross weight : 130 Kg
Combination Permeameter
(Constant head & Falling head testing methode)

ASTM D-2434 / AASHTO T-215

For determining coeffisient of permeability of compacted soil sample

Consist of :

Sample Chamber : Transparent fibre glass, 2 1/2″ i.d, 8″ heigh compessive spring, cast,alumunium body.

Funnel : Plastic, wide mouth, with over flow.

Frame : Alumunium frame

Porous Stone : 2 1/2″ diameter.

Burette : 50 ml capacity.

Graduated Cylinder : Glass made,100 ml capacity,single numberin

Stop Watch : Precision timer, stainless steel body, 60 sec sweep x 30 min.

Dimension (l x w x h) : 110 x 40 x 30 cm / Gross weight : 10
