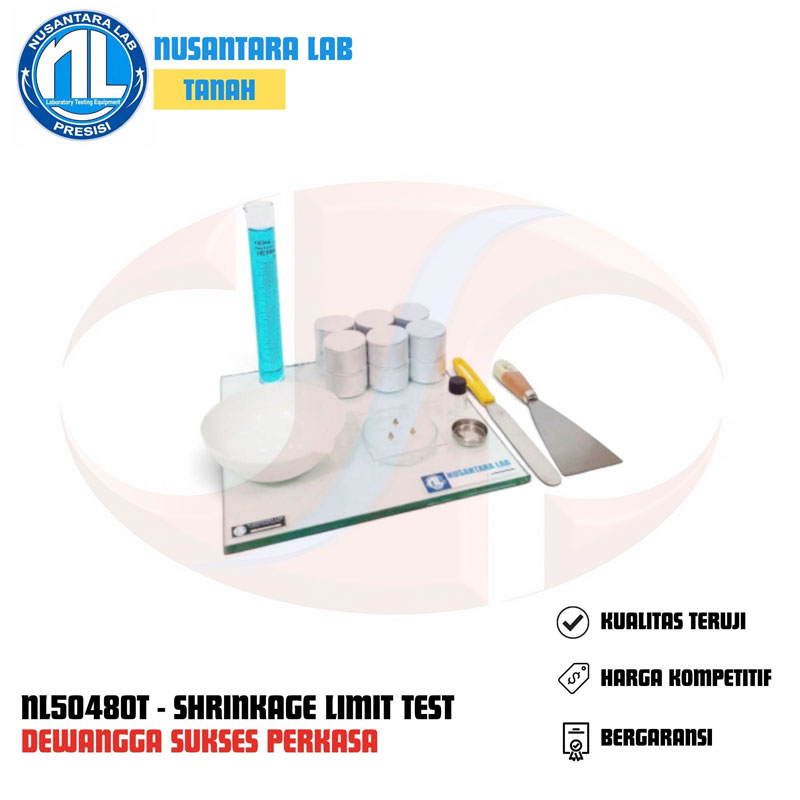

Shrinkage Limit Test

ASTM D-427  /  AASHTO T-92

For determining shrinkage limit of soil sample

Consist of :

• Prong Plate : 1.6 mm thick hard plastic, 76.2 mm square, 3 stainless steel needles, 0.8 mm dia, 3.2 mm height.
• Monel Shrinkage Dish : Flat bottom; 44.4 mm i.d, 12.7 mm height approx.
• Cristalizing Dish : Glass made.
• Dish : Glass, 57.2 mm i.d, 12.7 mm height approx.
• Overflow Dish : 9 cm dia approx.
• Mercury : Bottled.
• Glass Plate : Glass 10 mm thick, 30 x 30 cm.
• Thin Box : Alumunium, 60 gr capacity.
• Graduated Cylinder : Glass made,100 ml capacity,single numbering.
• Evaporating Dish : Heat resistance porcelain, 12 cm dia, 250 ml capacity.
• Spatula : Plastic handle, stainless  blade, 150 mm length.
• Scraper : Plastic handle, stainless blade, 100 mm length.

Dimension (l x w x h) : 10 x 10 x 30 Cm / Gross weight : 6 Kg
