ASTM C-78

For determining the Flexural Strength of Concrete Beam by using a simple beam, with third point loading.

Technical data :

  • 100 kN capacity.
  • 0,1  kN Increments
  • Hydraulic Pump Electric 220 V-AC, 50-60Hz, 1000 Watt, 1 Phase, Single Action, varible speed, 6.000 ml reservoir capacity. Maximum working pressure 50.000 kPa, single action gravity return. To operate the hydraulic pump consists of : VALIBLE SPEED, VULVE INCREASE—DECREASE, BUTTON ON-OFF
  • Digital Reading  DIGITAL INDICATOR WARE-DSP(+)Evo1

Tipe GE-100DSA

DIGITAL INDICATOR WARE-MBTplus Evo1Digital Indicator, Pressure tranducer connected with digital indicator Digital readout, 6-bit LED display resolution Reading results in kN, with data holder External Power Supply 220 VAC, External rechargeable 6V DC BatteryBattery life :  80 hours continous use with 12 hour recharge time. Support with : software DSP(+)Evo1 & Windows Original

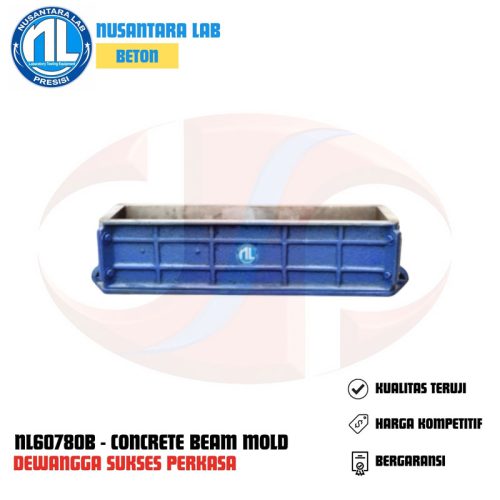

Sample size : 15 x 15 x 60 cm / 20 x 20 x 80 cm

Dimension (l x w x h) : 100 x 50 x 100 Cm / Gross weight : 130 Kg,
