Alat Laboratorium Beton

Alat Laboratorium Beton

Showing 19–27 of 37 results

Jual Alat Laboratorium Beton Kuat Tekan Beton 1500 kN (Hand Pump)
JUAL ALAT LABORATORIUM BETON khususnya ALAT KUAT TEKAN BETON | MESIN PRESS BETON | COMPRESSION MACHINE merupakan parameter utama yang harus diketahui dan dapat memberikan gambaran tentang hampir semua sifat—sifat mekanisnya yang lain dari beton tersebut. Hal ini dikarenakan karakteristik utama beton adalah sangat kuat dalam menahan gaya tekan, tetapi sangat lemah menerima gaya tarik.

ALAT KUAT TEKAN BETON dirancang untuk membantu dalam hal mencari nilai karakteristik beton yang di butuhkan, sesuai standar SNI 03-1974-1990 ASTM C-39 dengan bendan uji Kubus 15 x 15 x 15 cm atau Silinder 15 x 30 cm.

1500 kN Capacity x 5 kN Increment

Data Teknis :

Frame : Heavy-duty welded steel construction 30 cm profile steel colums 10 cm thick bottom and upper plate.

Hydraulic System : Hard-chromed piston 230mm diameter. Maximum working pressure 50.000 kPa. Overall dimension 280mm dia x 320mm. Single action gravity return.

Hydraulic Pump : Hand operated, single action 1.900 ml reservoir capacity. Maximum working pressure 50.000 kPa, single action gravity return.

Force Gauge : Bourdon tube manometer 280mm dial diameter with maximum load pointer (red pointer) steel box housing.

Compressive : Upper 180 x 180 mm ball seating,

Platen : Lower 250mm diameter.

Clearence : Horizontal 290mm. Vertical 310mm.

Dimension (l x w x h) : 760 x 620 x 1400 mm approx. Weight 500 kg approx.
Jual Alat Laboratorium Beton Kuat Tekan Beton 2000 kN (Hidrolik Sistem)
Hub : 085222177772 | 081809844542 ALAT KUAT TEKAN BETON merupakan parameter utama yang harus diketahui dan dapat memberikan gambaran tentang hampir semua sifat—sifat mekanisnya yang lain dari beton tersebut. Hal ini dikarenakan karakteristik utama beton adalah sangat kuat dalam menahan gaya tekan, tetapi sangat lemah menerima gaya tarik.

ALAT KUAT TEKAN BETON dirancang untuk membantu dalam hal mencari nilai karakteristik beton yang di butuhkan, sesuai standar SNI 03-1974-1990 ASTM C-39 dengan bendan uji Kubus 15 x 15 x 15 cm atau Silinder 15 x 30 cm.

2000 kN Capacity x 5 kN Increment

Data Teknis :

Frame : Heavy-duty welded steel construction 30 cm profile steel colums 10 cm thick bottom and upper plate.

Hydraulic System : Hard-chromed piston 230mm diameter. Maximum working pressure 50.000 kPa. Overall dimension 300mm dia x 320mm height. Single action gravity return.

Hydraulic Pump : Electric 220 V-AC, 50-60Hz, 1000 Watt, 1 Phase, Single Action, Varible speed, 6.000ml reservoir capacity. Maximum working pressure 50.000 kPa, single action gravity return.

Force Gauge : Bourdon tube manometer 280mm dial diameter with maximum load pointer (red pointer) steel box housing.

Compressive : Upper 180 x 180 mm ball seating,

Platen : Lower 250mm diameter.

Clearence : Horizontal 290mm. Vertical 310mm.

Dimension (l x w x h) : 760 x 320 x 1400 mm approx. Weight 500 kg approx.
Jual Alat Laboratorium Beton Kuat Tekan Beton Digital
JUAL ALAT LABORATORIUM BETON Hub : 085222177772 | 081809844542 khususnya ALAT KUAT TEKAN BETON DIGITAL | MESIN PRESS BETON DIGITAL | DIGITAL COMPRESSION MACHINE

ALAT KUAT TEKAN BETON DIGITAL merupakan parameter utama yang harus diketahui dan dapat memberikan gambaran tentang hampir semua sifat—sifat mekanisnya yang lain dari beton tersebut. Hal ini dikarenakan karakteristik utama beton adalah sangat kuat dalam menahan gaya tekan, tetapi sangat lemah menerima gaya tarik.

ALAT KUAT TEKAN BETON DIGITAL dirancang untuk membantu dalam hal mencari nilai karakteristik beton yang di butuhkan, sesuai standar SNI 03-1974-1990 ASTM C-39 dengan bendan uji Kubus 15 x 15 x 15 cm atau Silinder 15 x 30 cm.

Data Teknis :

Frame : Heavy-duty welded steel construction 30 cm profile steel colums 10 cm thick bottom and upper plate.

Hydraulic System : Hard-chromed piston 250mm diameter. Maximum working pressure 50.000 kPa. Overall dimension 300mm dia x 320mm height. Single action gravity return.

Hydraulic Pump : Electric 220 V-AC, 50-60Hz, 1000 Watt, 1 Phase, Single Action, Varible speed, 6.000ml reservoir capacity. Maximum working pressure 50.000 kPa, single action gravity return.

Force Gauge : Bourdon tube manometer 280mm dial diameter with maximum load pointer (red pointer) steel box housing.

Compressive : Upper 180 x 180 mm ball seating,

Platen : Lower 250mm diameter.

Clearence : Horizontal 290mm. Vertical 310mm.

DIGITAL INDICATOR WARE-DSP(+)Evo1

Digital Indicator 0,1 kN Increment, Pressure tranducer connected with digital indicator Digital readout, 6-bit LED display resolution Reading results in kN, with data holder External Power Supply 220 VAC, External rechargeable 6V DC BatteryBattery life : 80 hours continous use with 12 hour recharge time..Support with : software DSP(+)Evo1 & Windows Original

Dimension (l x w x h) : 760 x 620 x 1400 mm approx. Weight 560 kg approx.
Jual Alat Laboratorium Beton Meja Getar / Vibrating Table

ALAT LABORATORIUM BETON

Steel construction 50 x 50 table, separate control box, variable speed up to 3.600 rpm. For compacting aggregate in steel container or concrete sample in cube or cylinder.

Dimension (l x w x h) : 55 x 55 x 85 Cm / Gross weight : 70 Kg
Jual Alat Laboratorium Beton Modulus of Elasticity in Concrete Test

JUAL ALAT LABORATORIUM BETON MODULUS OF ELASTICITY IN CONCRETE TEST

For measuring average axial deformation of concrete cylindrical sample during compression test. cast alumunium, provided with dial indicator 0.001 x 5 mm.

Dimension (l x w x h) : 30 x 30 x 35 Cm / Gross weight : 5 Kg
Jual Alat Laboratorium Beton Portable Core Drilling Machine
For cutting core samples from concrete bulding and other material on the road, run ways and structures.

Maximum drilling : 4 inch (101.6 mm)

Rated input power: 1400W

No-Load speed : 0-2200 rpm/min

Dimension Machine (lxwxh) : 440 x 440 x 460 mm approx

Dimension Stand (lxwxh) : 870 x 480 x 470 mm approx. / Nett weight : 34 kg
Jual Alat Laboratorium Beton Slump Test
ASTM C-143 / AASHTO T-119, According SNI 03-1972-1990

For determining slump/ workability of concrete both in the laboratory and in the field.

Consist of :

Slump Cone : Heavy gauge sheet steel, 4″ top dia, 8″ bottom dia, 12″ height.

Inspection Scale : Machine steel, 0-10 cm slump measurement, 1 cm increment.

Base Plate : Steel sheet, carrying handle, 600 x 600 x 5 mm.

Scoop : Cast alumunium, large size, round buttom.

Trowel : Pointed type, wooden handle.

Steel Wire Brush : Wooden handle.

Tamping Rod : Machine steel, galvanized 16 mm dia, 600 mm length.

Dimension (l x w x h): 70 x 70 x 50 Cm / Gross weight: 30 Kg

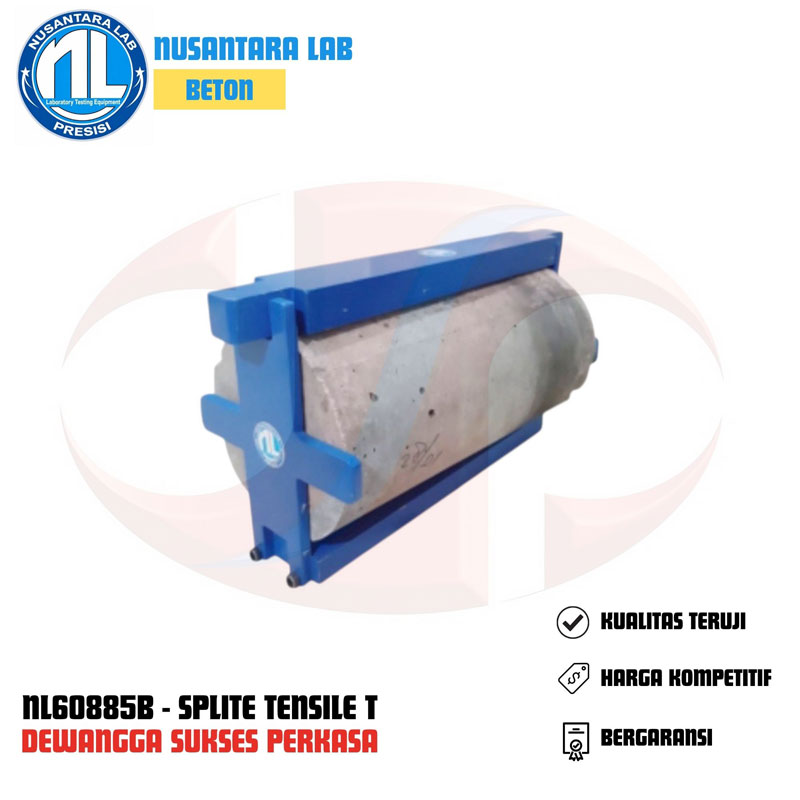

Jual Alat Laboratorium Beton Splite Tensile Test

BS-1881

For splite cylinder test on specimens of 150 diameter x 300 mm length, self-supporting lower plate.

Dimension (l x w x h) : 35 x 20 x 25 Cm / Gross weight : 4 Kg
Jual Alat Laboratorium Beton Vertical Cylinder Capping Concrete
JUAL ALAT LABORATORIUM BETON Hub : 085222177772 | 081809844542

ASTM C-617

Equipment for forming caps on ends of 15 cm diameter concrete cylinder to provide uniform loading surface for compression test.

Consist of :

Vertical Cylinder Capper : Cast alumunium frame, rotating ground table, for 150 mm diameter concrete cylinder.

Capping Compound Warmer : Approx 3 ltr cap, heating temperature up to 200°C, 220 V-AC.

Capping Ladle : Stainless steel ladle, wooden handle.

Cylinder Carrier : Double handle, snap clamp, for 150 mm diameter, concrete cylinder.

Capping Compound : Powder, approx 115 °C pouring temperature.

Dimension (l x w x h) : 100 x 60 x 60 Cm / Gross weight : 35 Kg
