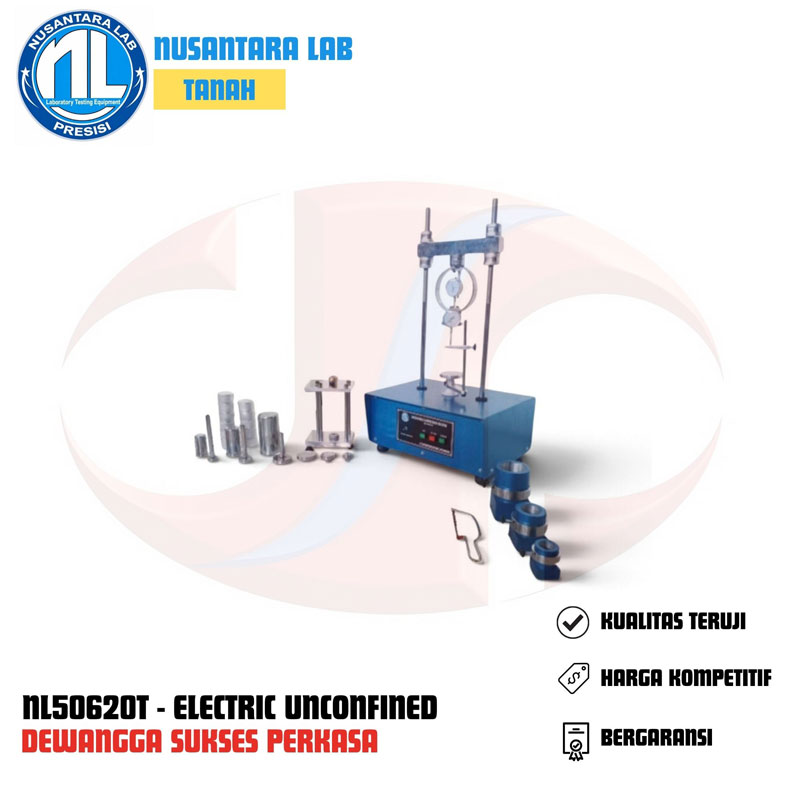

Unconfined Compression Machine Electric
ASTM D-2166 / AASHTO T-208 / SNI 03-3638-1994
For determining stress strain relationship of cohessive soil without confining pressure.
Consist of :
- Unconfined Compression Machine : Electric, 220V-AC, 200 W, variable speed.
- Sample Tubes : 35.0 mm dia x 70 mm height.
- Sample Tubes : 47.5 mm dia x 95 mm height.
- Sample Tubes : 70.0 mm dia x 140 mm height.
- Split Sample Tubes : 35.0 mm dia x 70 mm height.
- Split Sample Tubes : 47.5 mm dia x 95 mm height.
- Split Sample Tubes : 70.0 mm dia x 140 mm height.
- Extruder : 34.5 mm dia x 71 mm height.
- Extruder : 47.0 mm dia x 96 mm height.
- Extruder : 69.5 mm dia x 141 mm height.
- Trimmer : Steel frame, 3 tubes size.
- Proving Ring : 100 kg capacity.
- Dial Indicator : Range 30 mm x 0.01 mm.
- Thin Box : Alumunium, 60 gr capacity.
- Wire Saw : 10 cm length approx.
Dimension (l x w x h) : 80 x 70 x100 cm / Gross weight : 60 Kg
